Description
8+8 Solid Pin CPU Power Connector Twin 14+2+2 Digital VRM Design
- 60A DrMOS
- 6-Layer 2X Copper PCB
- PCIe 5.0 Ready Mid-Loss PCB

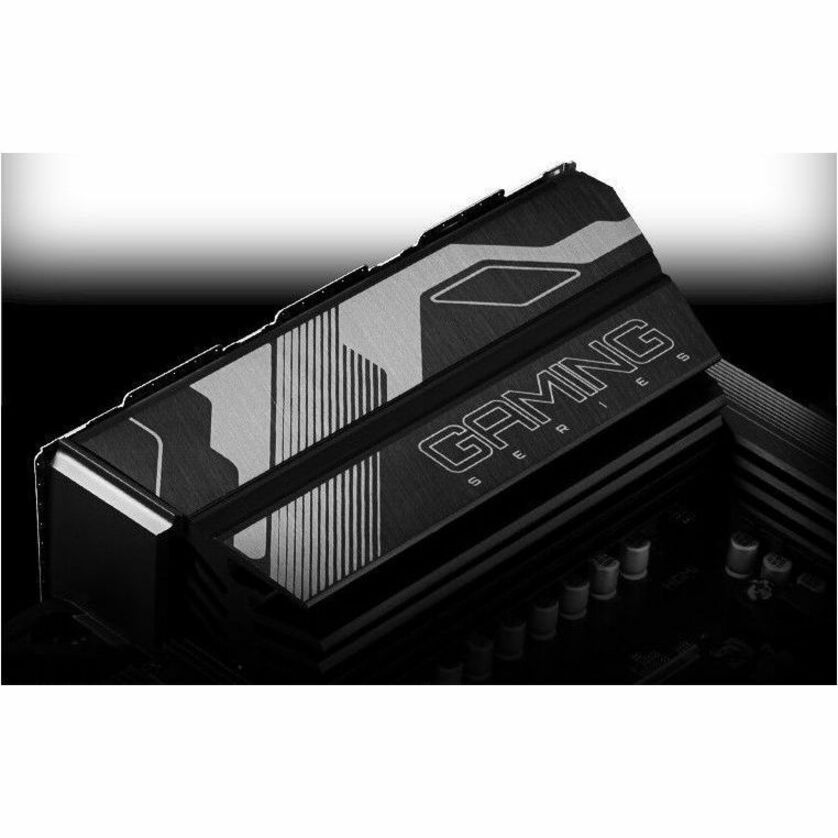

Advanced Thermal Design
- Fully Covered MOSFET Heatsinks
- 8 mm Mega-Heatpipe
- 7 W/mk Thermal Conductivity Pad
- Aluminum I/O Cover
Design Ready for PCI Express 5.0

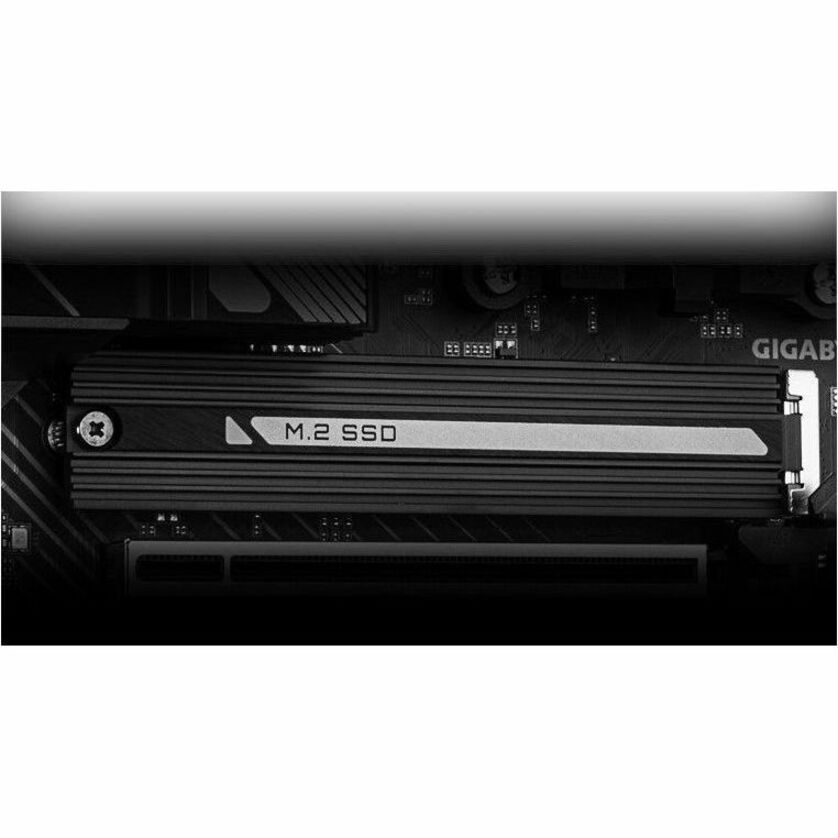

- 1*PCIe 5.0 x4 M.2 & 3* PCIe 4.0 x4 M.2 with M.2 Thermal Guard
- 1*PCIe 4.0 x16 with Ultra Durable™ Armor
- 1*PCIe 3.0 x4 & 1*PCIe 3.0 x2

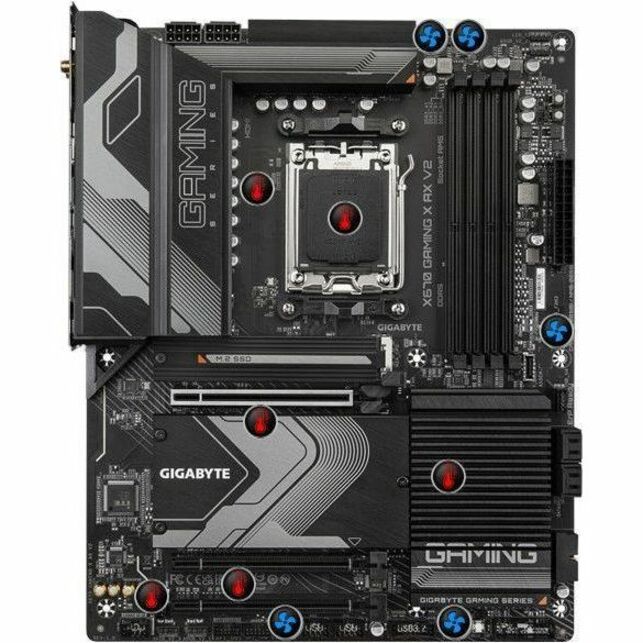

PCIe EZ-Latch Dual Channel SMD DDR5 Memory Socket AM5 Supports AMD Ryzen™ 7000 Series Processors Smart Fan 6
- 5*PWM/DC Fan Headers
- Dual Fan Curve Mode
Multi-key
- Multiple function set by BIOS
- Reset/RGB Switch/Direct to BIOS/Safe Mode

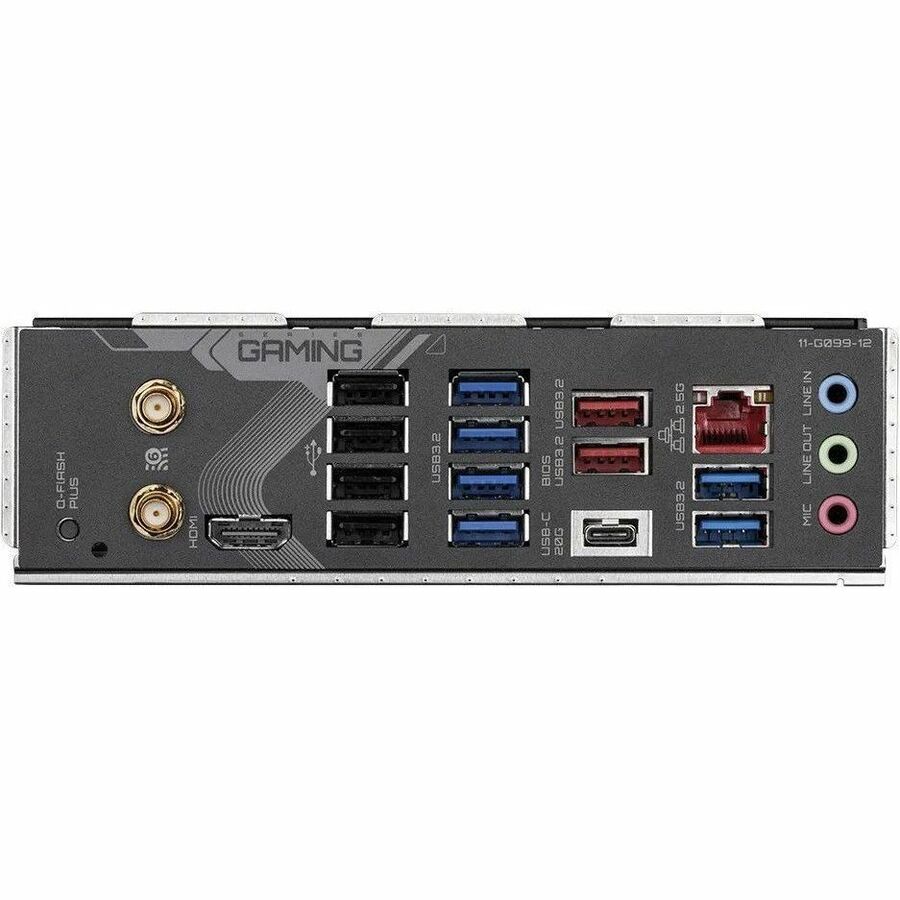

4 USB 2.0 1 HDMI 6 USB 3.2 Gen1 Type-A 1 USB 3.2 Gen 2x2 Type-C Q-FLASH PLUS Button 2*USB 3.2 Gen2 Type-A 2.5GbE LAN Hi-Fi Audio
- 8-Ch HD Audio
- Audio Noise Guard
- High-End Audio Capacitor
Front USB 3.2 Gen 2x2 Type-C 4 SATA 6Gb/s RGB FUSION
- 3 x Addressable LED Headers
- 1 x RGB LED Header
24 Pin ATX Power Connector Wi-Fi 6E 802.11ax with Ultra-high gain Antenna M.2 EZ-Latch
Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

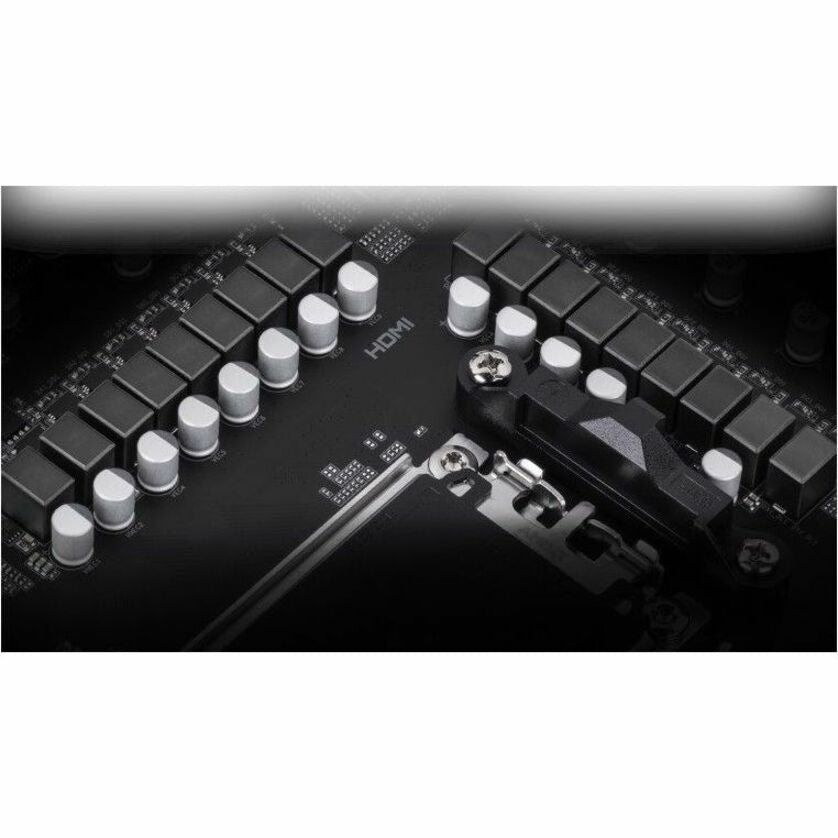

Digital VRM Design14+2+2 Phases Digital VRM Solution
GIGABYTE UD series motherboards use a 14+2+2 phases digital PWM design to support AMD's new generation CPU by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
EXPO & XMP SupportDDR5 EXPO & XMP Overclocking Up to 8000 and Beyond
GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 8000 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO/ Intel XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.
- Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
- Supported 0 RAID levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- 4 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
