Description

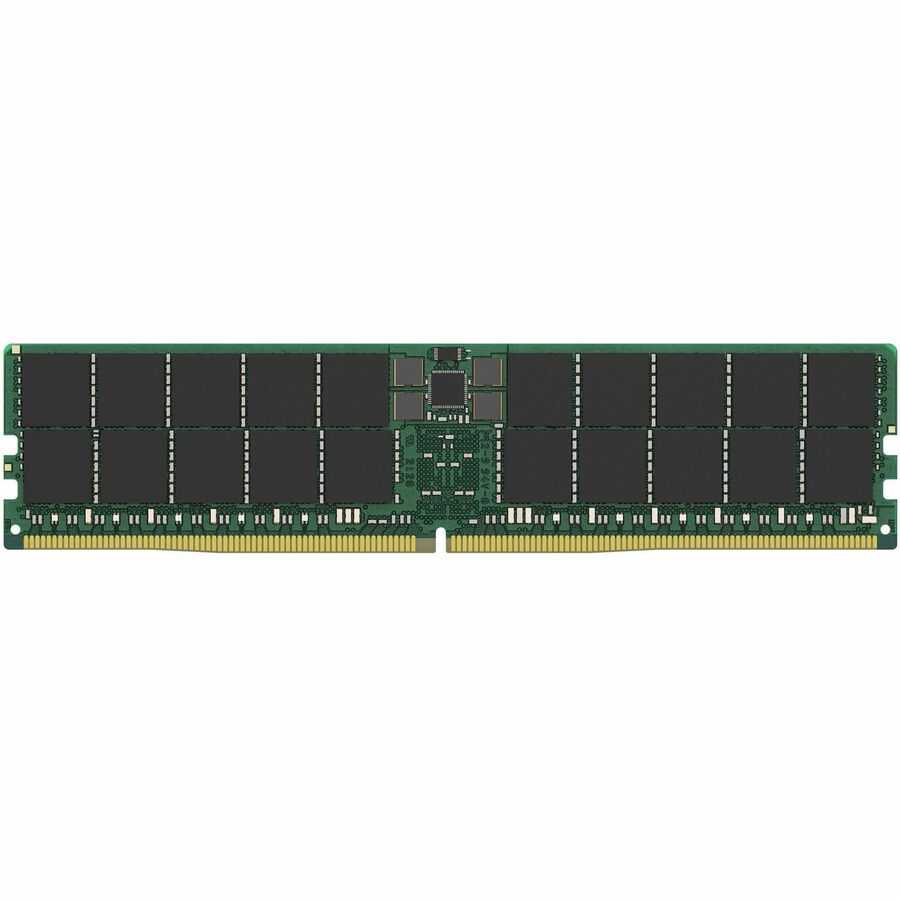

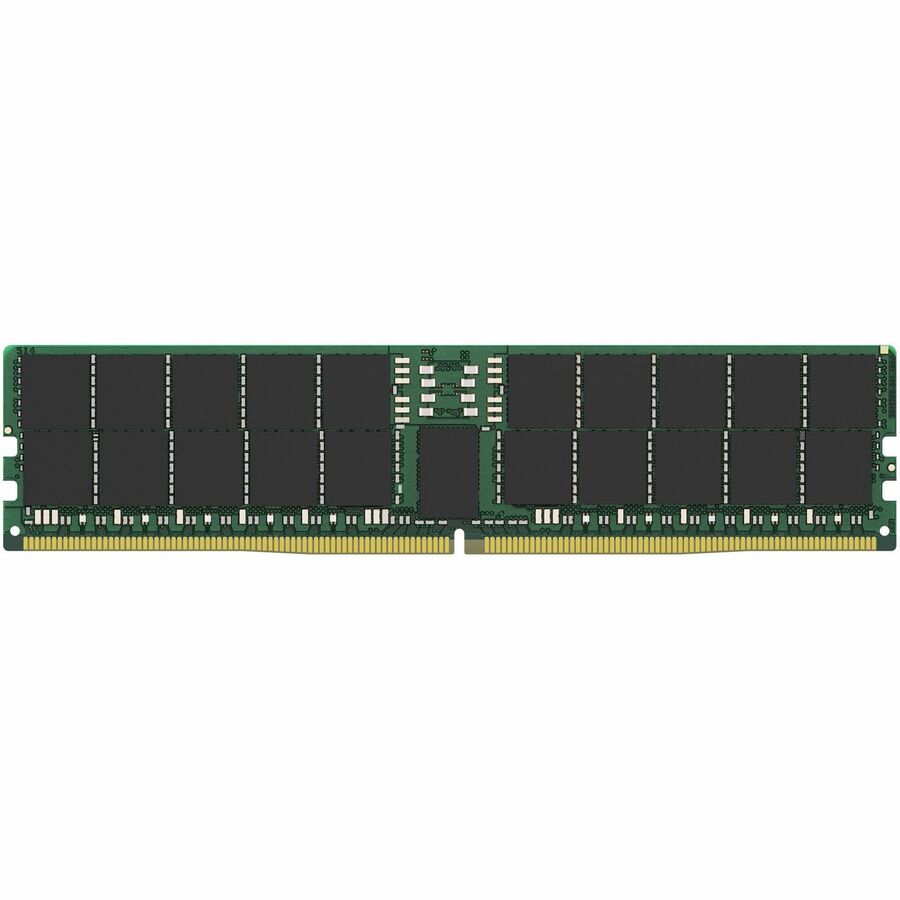

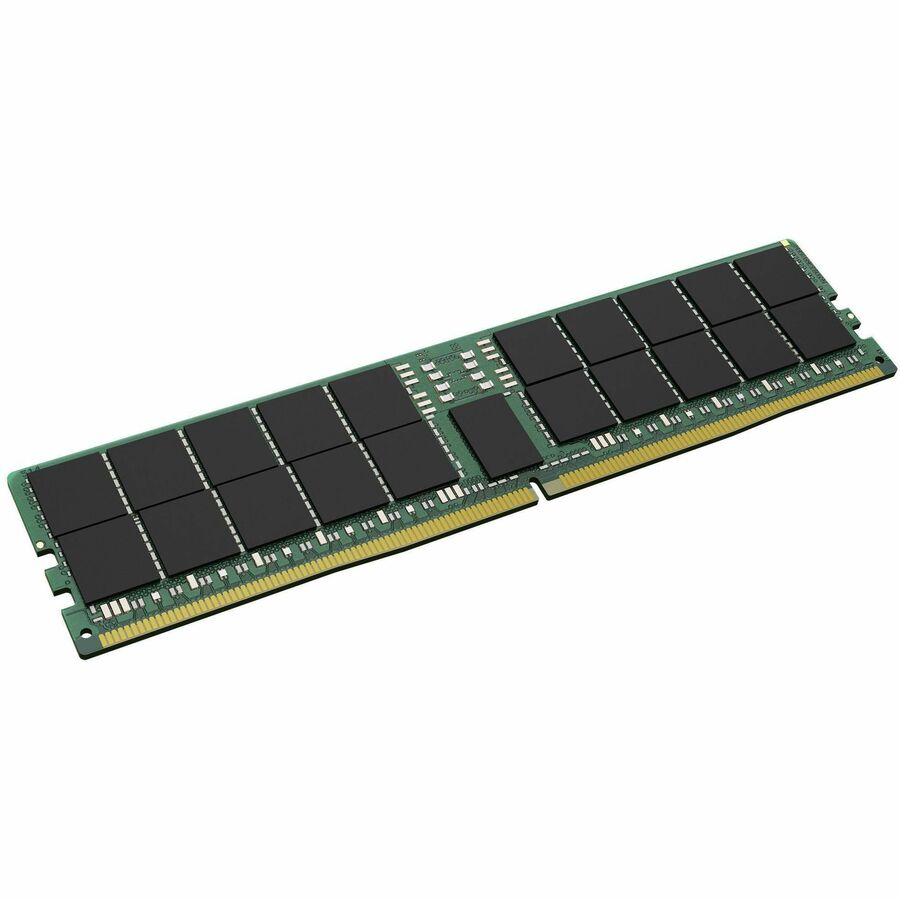

Kingston's KSM56R46BD8PMI-48HMI is a 6G x 80-bit (48GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 3G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
- Allow convenient and fast access to the stored information your computer is actively using for maximum efficiency
- No matter how heavy and numerous the applications that you are using, 5600 MHz memory speed will run them smoothly
- Whether you are playing games, using heavy loaded OS or video editing software, the 48 GB of memory will make them run in a flash
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
- 288-pin for enhanced, dependable system performance with maximum usability
- CL46 CAS latency for faster, dependable clock cycles which allows quick access and retrieval of data and information
- Server device support for your RAM Module to allow enhanced system performance and reliable memory solution
- DIMM form factor with 288-pin and 48 GB memory size effectively reduces minimizes the load on the server memory BUS to ensure maximum productivity
- Registered signal processing provides increased processing power to allow maximum productivity
