Description

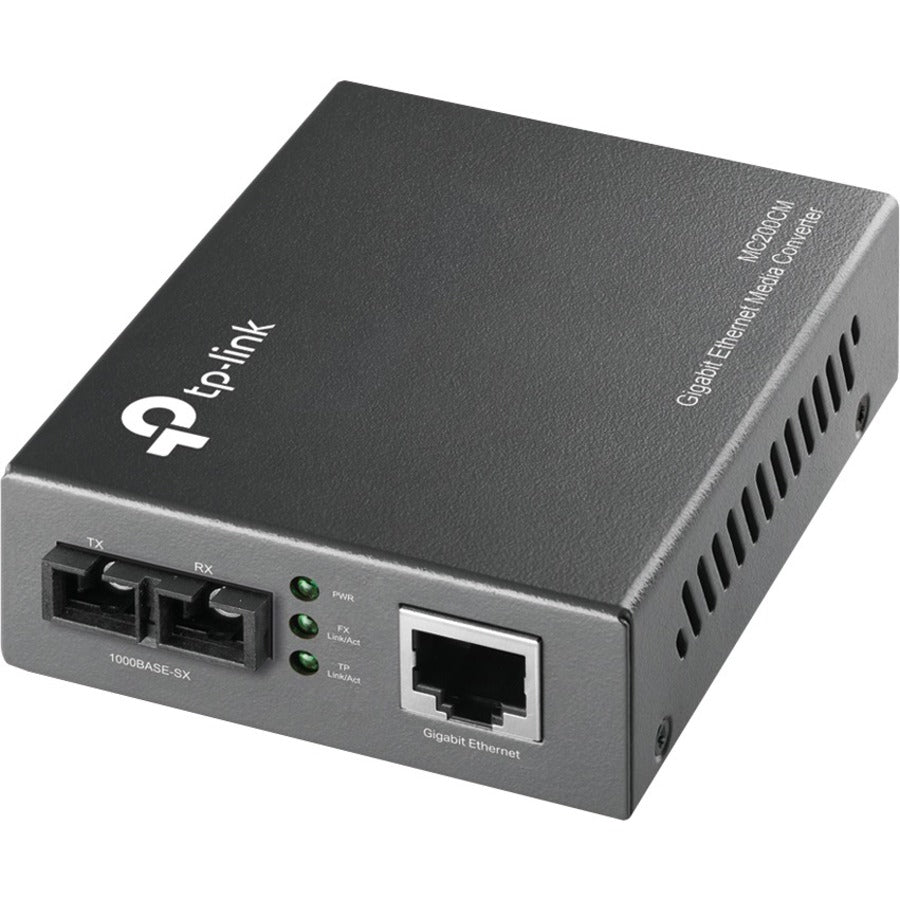

The MC200CM is a media converter designed to convert 1000BASE-FX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-FX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. It works at 850nm on both transmitting and receiving data.
- External power supply. Wave Length: 850nm. Max Power Consumption: 1.66W.
- Easy-to-view LED indicators provide status to monitor network activity easily.
- Extends fiber distance up to 550m (1,800feet) using 50/125um Multi-Mode Fiber, 220m(720 feet) using 62.5/125um Multi-Mode Fiber.
- Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port.
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port.
- Designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa.
