Description

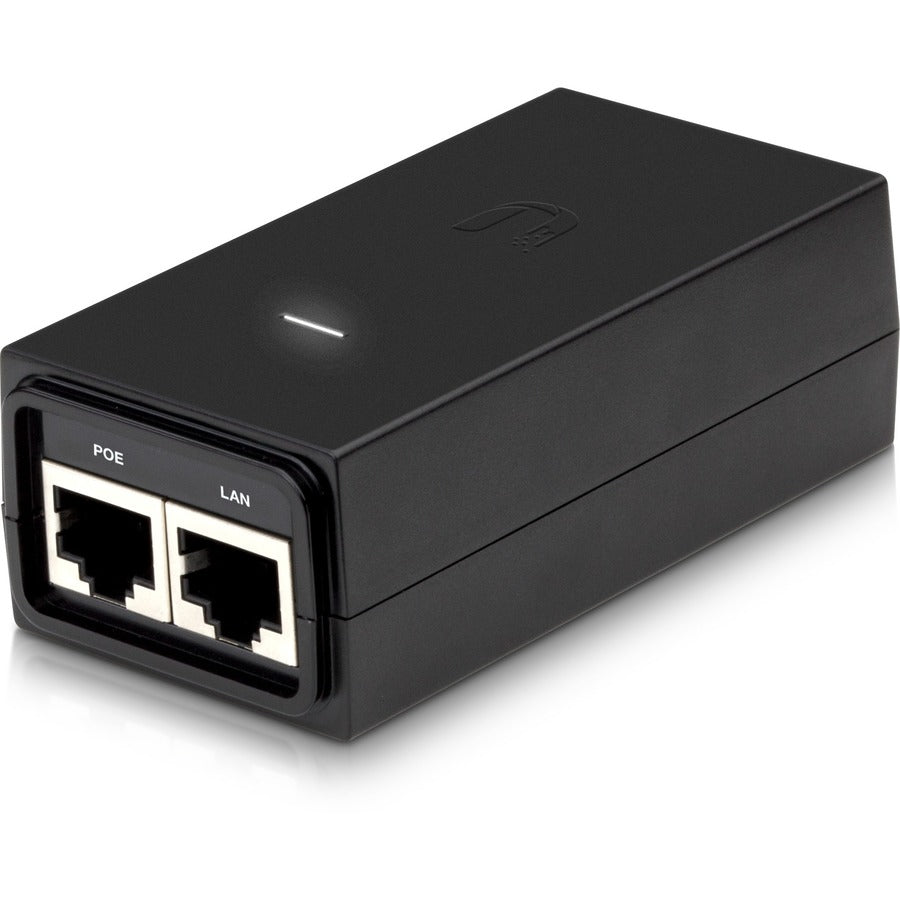

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices, including:
- airFiber®
- airMAX®
- EdgeMAX®
- mFi®
- UniFi® AP
- UniFi Protect / airVision®
- UniFi LED
- U Fiber
Ubiquiti PoE Adapter Compatibility with the airGateway®
Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber's local network to the WISP network.
The airGateway is available in three models:
- airGateway Standard model with an internal antenna
- airGateway Pro Dual-Band Wi-Fi model with an internal antenna
- airGateway-LR Long-range Wi-Fi model with an external antenna for extended range
Protection
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.
Potential for ESD
Areas vulnerable to ESD events in a network without a Ubiquiti PoE Adapter.
Protection Against ESD
? Ubiquiti PoE Adapters and TOUGHCable protect against ESD events in a network.
. .- Certifications & Standards :
- IEC-320 C6
- CE
- FCC
- IC,
- UL
- IEC 60950-1:2005+A1
- UL60950-1
- EN55022:2010
- EN55024:2010
- FCC Class B
- Maximum Output Voltage : 24 V DC
- Maximum Output Current : 500 mA
- Input Voltage : 120 V AC,230 V AC
- Maximum Input Current : 300 mA
- Form Factor : Wall Mountable
- Output Ports : 10/100/1000Base-T
- Manufacturer Website Address : http://www.ui.com
- Product Type : PoE Injector
- Input Ports : 10/100/1000Base-T
- Protection Type : Surge Protection,Clamping Protection,Peak Pulse Current,ESD Protection
- Manufacturer : Ubiquiti Inc.
- Product Model : POE-24-12W-G
- Compatibility :
Ubiquiti Products:
- airFiber
- airMAX
- airVision
- UniFi
- mFi
- UniFi® AP
- UniFi Protect / airVision®
- UniFi LED
- UFiber
- Country of Origin : China
- Minimum Input Current : 200 mA
