Description

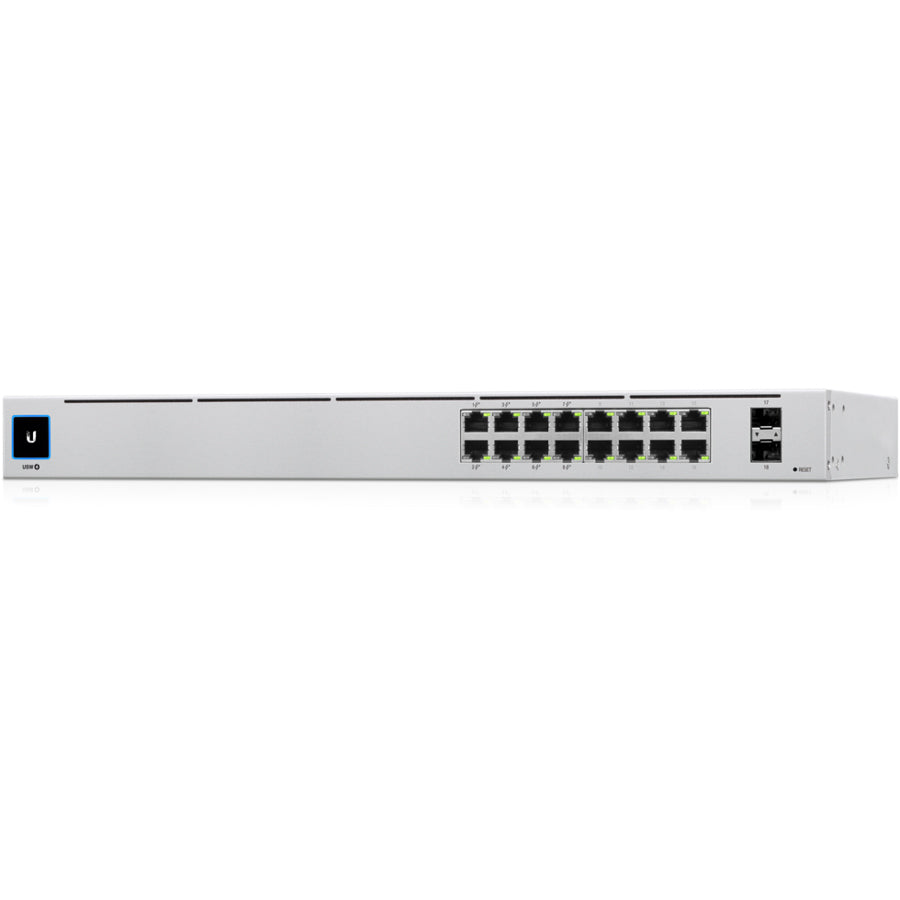

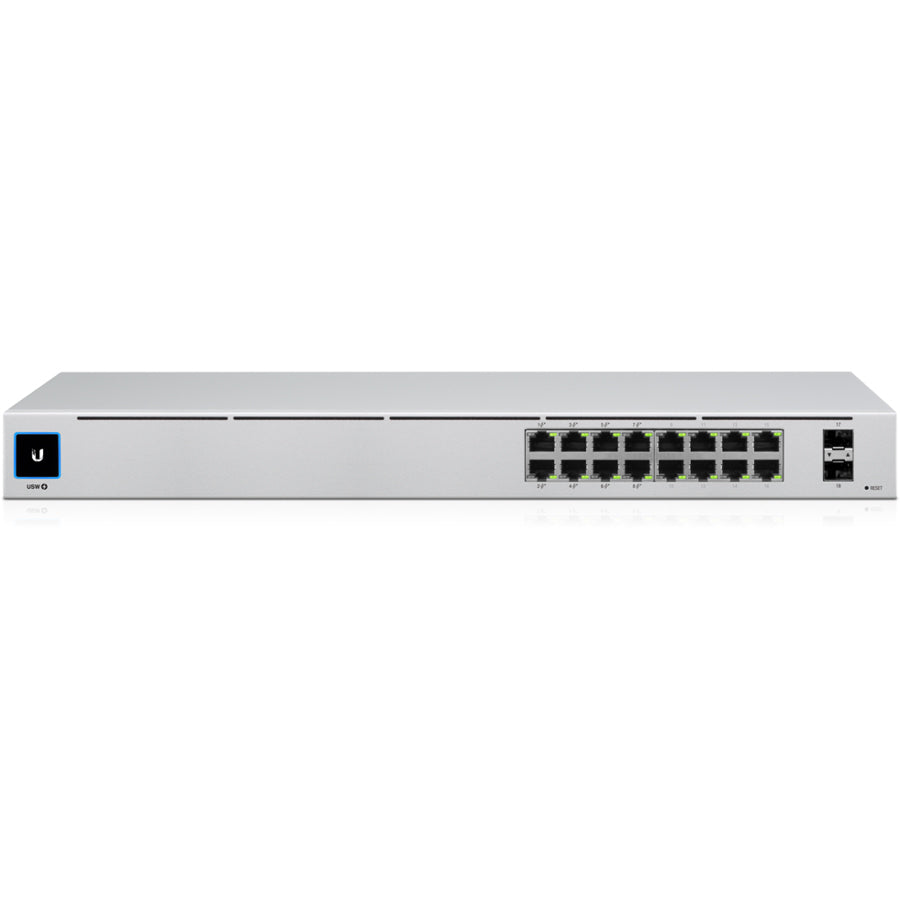

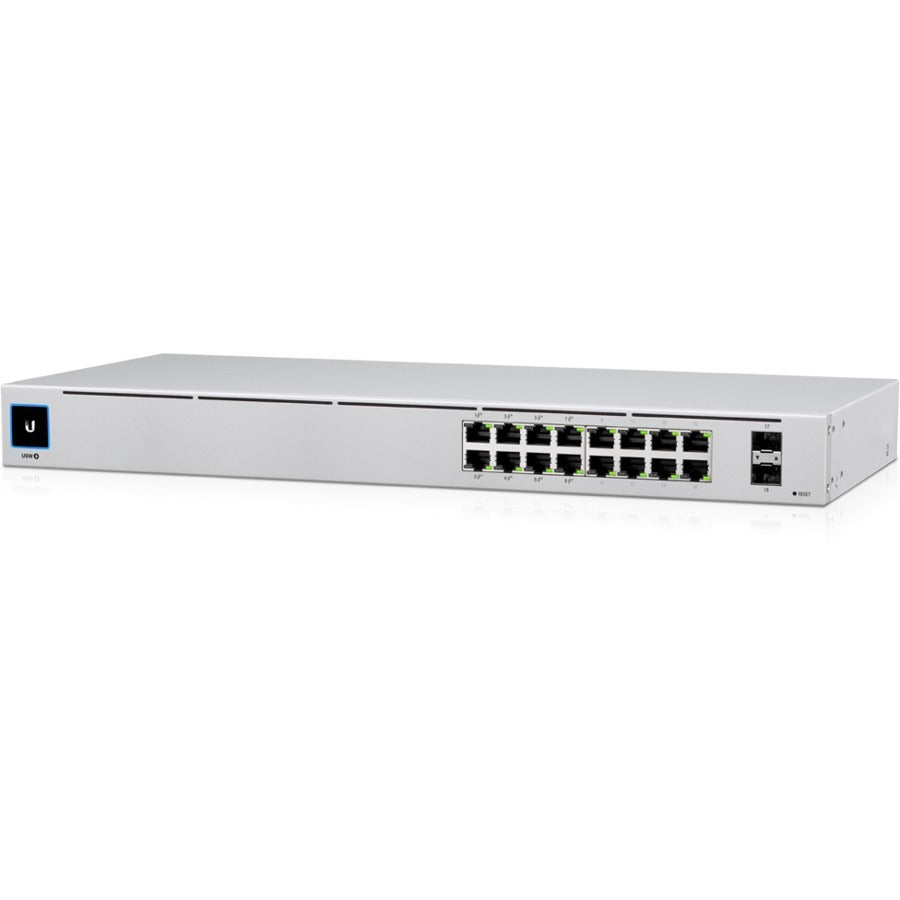

The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9" , the compact fanless design can be easily installed in a SOHO rack cabinet.
Managed and configured by the UniFi Network Application with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Application and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
- Ethernet Switch ensures productivity by providing an efficient, hassle-free connection
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Features 16 networking ports to easily establish a local network or expand your existing one
- Built-in power supply to ensure all components are being supplied with accurate voltage
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Rack-mountable form factor for added reliability and dependability
- Management capability allows maximum efficiency and with unrestricted control
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Power Source : Power Supply
- Layer Supported : 2
- Port/Expansion Slot Details : 8 x Gigabit Ethernet PoE+,8 x Gigabit Ethernet Network,2 x Gigabit Ethernet Expansion Slot
- Modular : Yes
- Limited Warranty : 1 Year
- Form Factor : Rack-mountable,Desktop
- Package Contents :
- UniFi 16-Port PoE Switch
- Rackmount Hardware
- Manufacturer Website Address : http://www.ui.com
- Uplink Port : Yes
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 2
- Manufacturer : Ubiquiti Inc.
- Product Model : USW-16-POE
- Total Number of Network Ports : 16
- Compatible Rack Unit : 1U
- Manageable : Yes
- Media Type Supported : Twisted Pair,Optical Fiber
- Number of SFP Slots : 2
- Network Technology : 10/100/1000Base-T,1000Base-X
- Product Line : Unifi
- Expansion Slot Type : SFP (mini-GBIC)
