Description

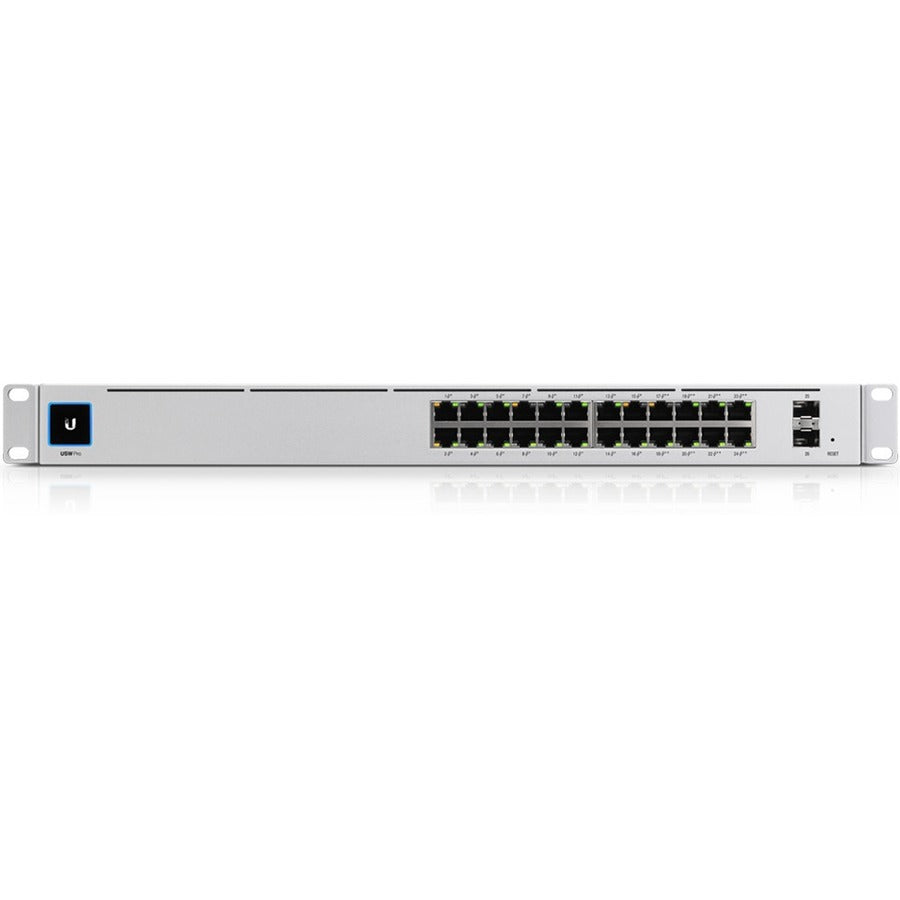

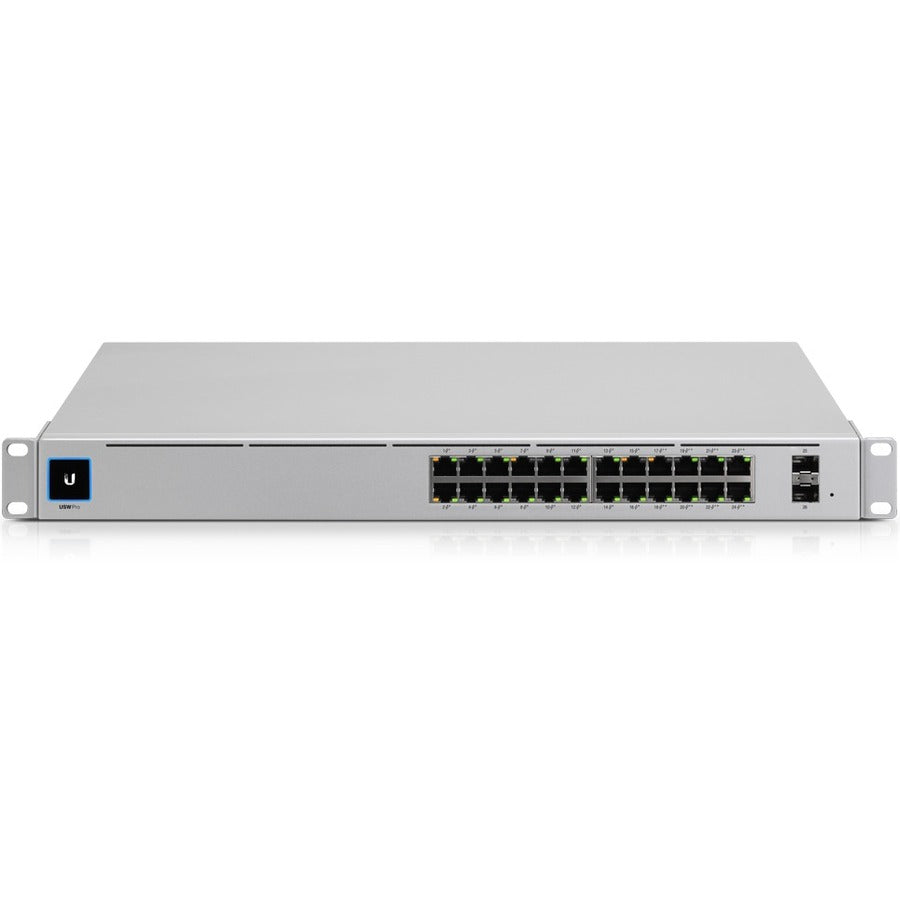

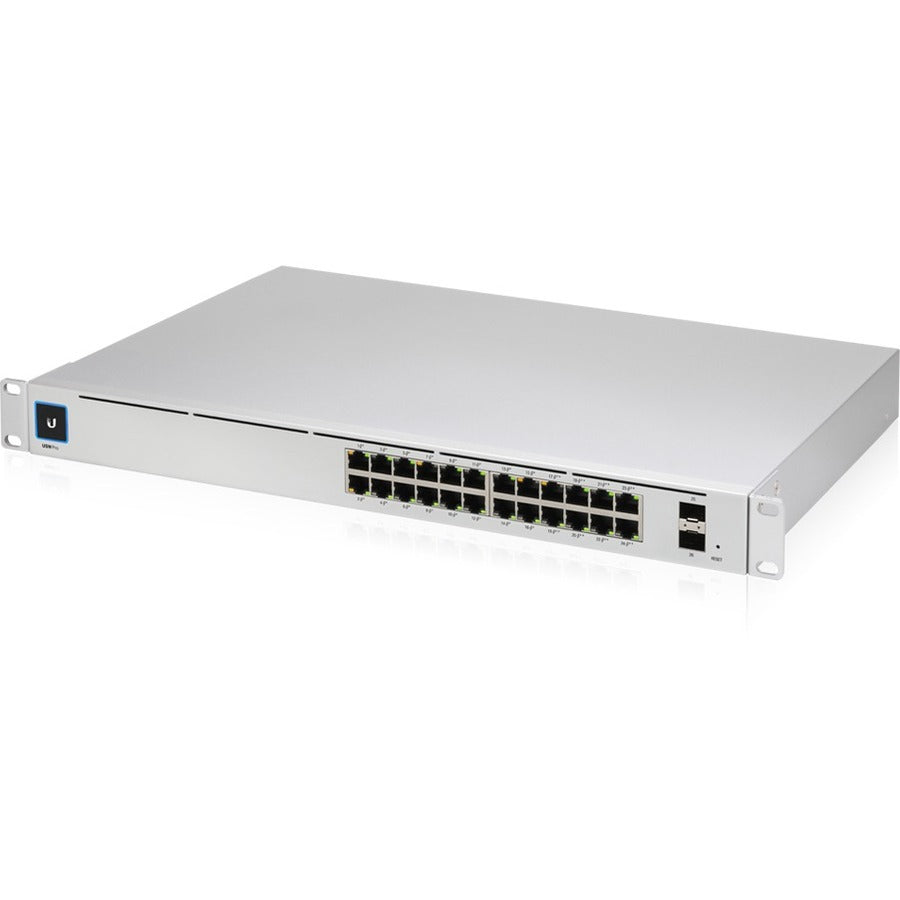

Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:
- USW-Pro-24-PoE 24 RJ45 ports with 2 SFP+ ports
- USW-Pro-48-PoE 48 RJ45 ports with 4 SFP+ ports
In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.
Near-Silent Cooling
The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.
Fiber Connectivity
SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.
802.3bt PoE++
PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802.3af/at PoE.
Redundant Power Option
The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.
- Auto-Sensing IEEE 802.3af/at/bt PoE
- SFP+ Ports for 10G Links
- Integrated Fans for Near-Silent Cooling
- Network Technology : 10/100/1000Base-T,10GBase-X
- Power Source : Power Supply
- Modular : Yes
- Form Factor : Rack-mountable
- Package Contents :
- USW-Pro-24-POE Layer 3 Switch
- Rack Mount Hardware
- Manufacturer Website Address : http://www.ui.com
- Uplink Port : Yes
- Manufacturer : Ubiquiti Inc.
- Product Model : USW-Pro-24-POE
- Compatible Rack Unit : 1U
- Manageable : Yes
- Redundant Power Supply Supported : Yes
- Ethernet Technology : Gigabit Ethernet,10 Gigabit Ethernet
- Environmentally Friendly : Yes
- Layer Supported : 3
- PoE Budget : 400 W
- Port/Expansion Slot Details : 16 x Gigabit Ethernet PoE+,8 x Gigabit Ethernet PoE++,2 x 10 Gigabit Ethernet Uplink
- Limited Warranty : 1 Year
- Product Type : Layer 3 Switch
- Number of Total Expansion Slots : 2
- Total Number of Network Ports : 24
- Power Consumption : 50 W
- Media Type Supported : Optical Fiber,Twisted Pair
- Expansion Slot Type : SFP+
- Number of SFP+ Slots : 2
