Description

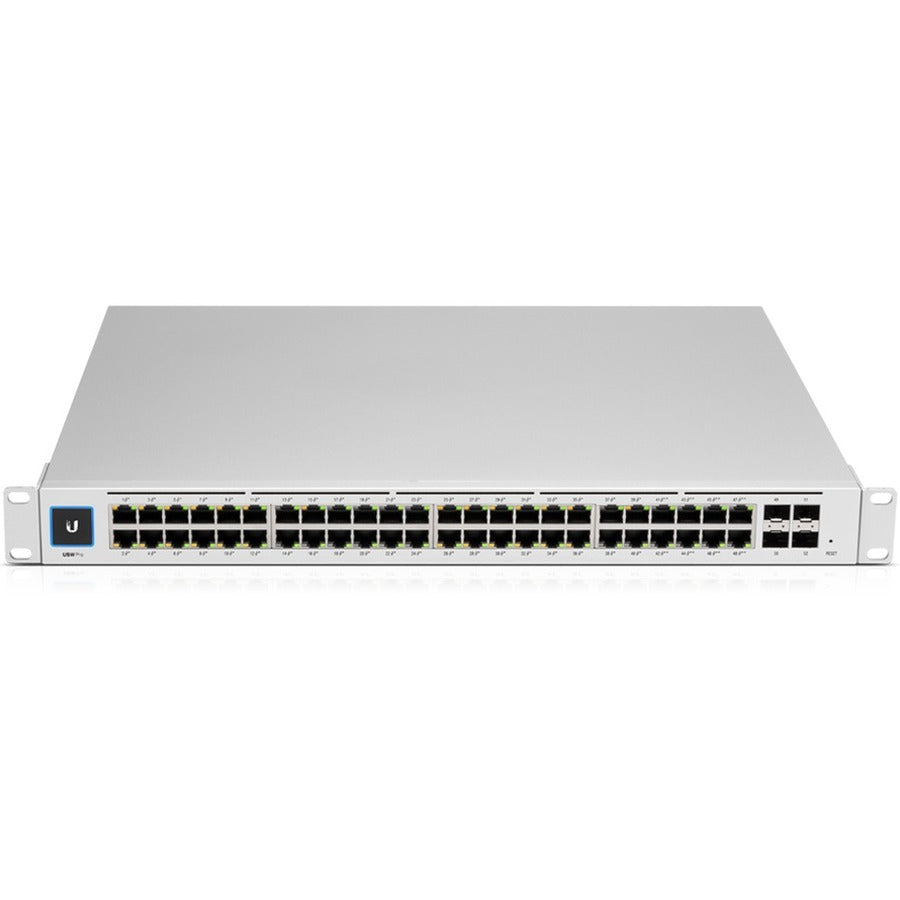

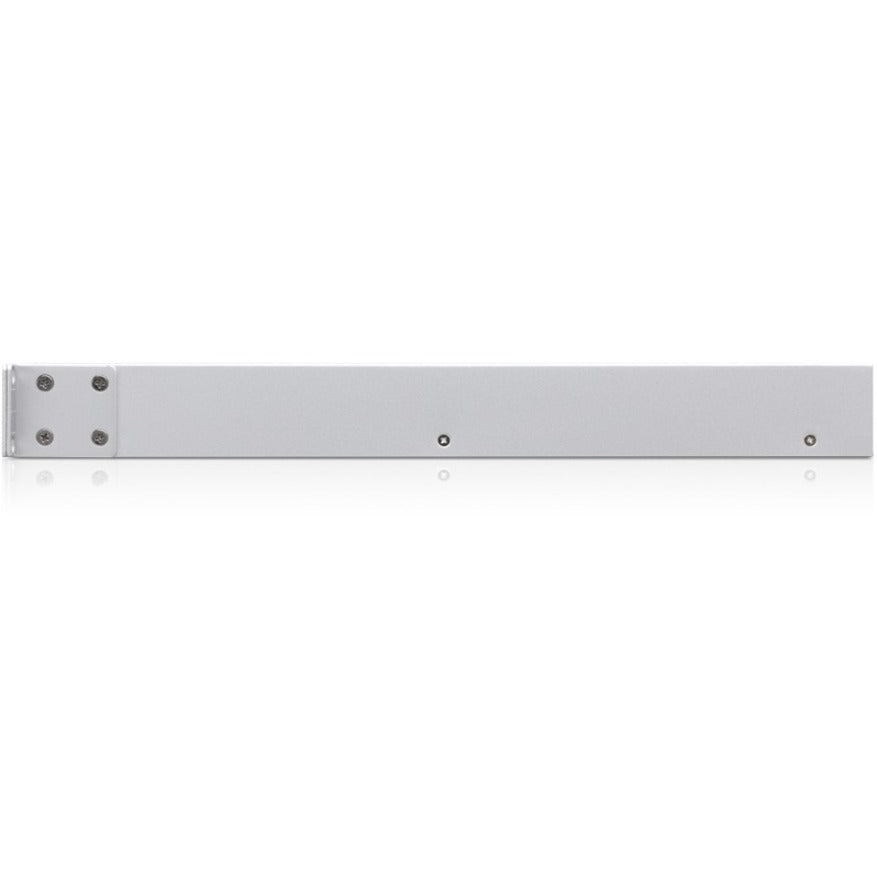

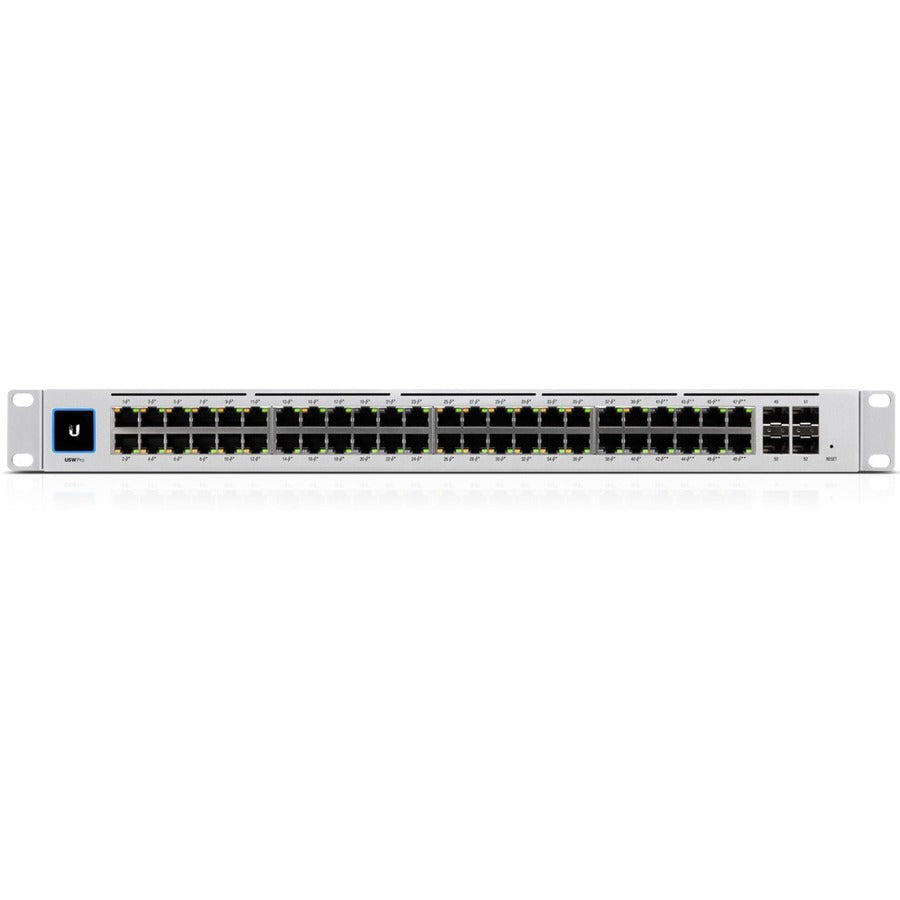

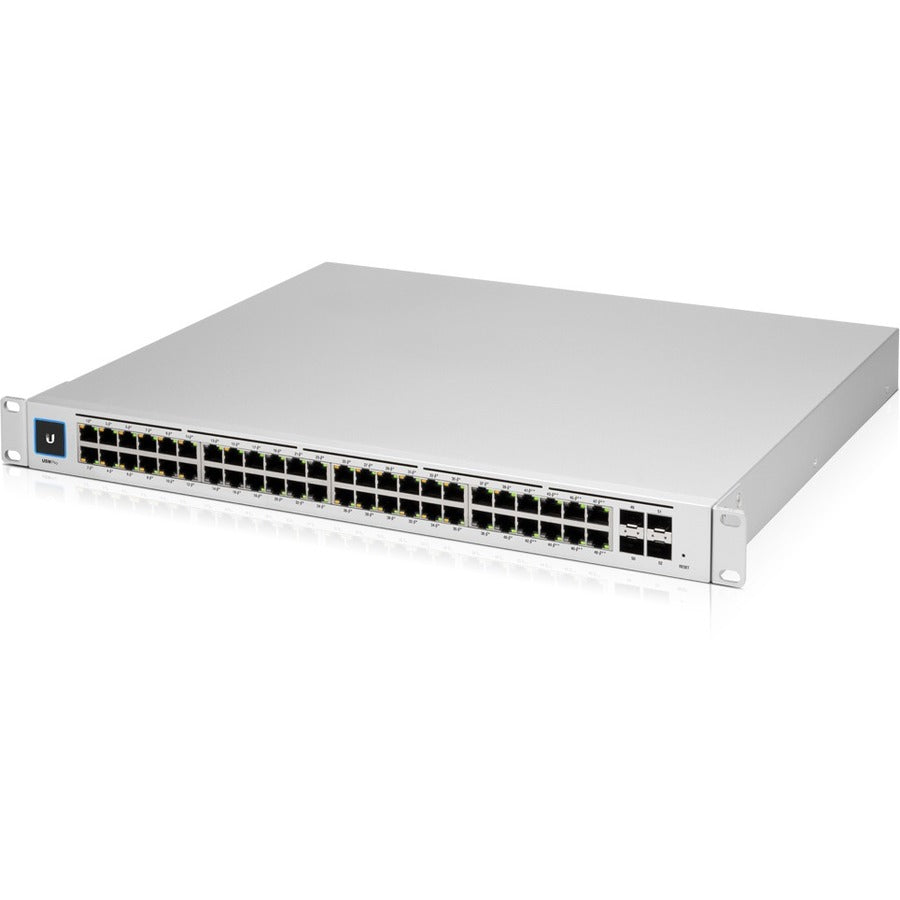

Expand and power your network with the UniFi® Pro PoE Switch, part of the Ubiquiti® UniFi Enterprise System. It is available in two models:
- USW-Pro-24-PoE 24 RJ45 ports with 2 SFP+ ports
- USW-Pro-48-PoE 48 RJ45 ports with 4 SFP+ ports
Layer 3 Features
In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.
Near-Silent Cooling
The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.
Fiber Connectivity
SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.
802.3bt PoE++
PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802.3af/at PoE.
Redundant Power Option
The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.
- (40) GbE PoE+, (8) GbE PoE++ ports
- (4) 10G SFP+ ports
- 600W total PoE availability
- DC Power backup ready
- Layer 3 switching
- Near-silent cooling
- Power Source : Power Supply
- Modular : Yes
- PoE (RJ-45) Port : Yes
- Form Factor : Rack-mountable
- Package Contents :
- USW-Pro-48-PoE Layer 3 Switch
- Rack Mount Hardware
- Manufacturer Website Address : http://www.ui.com
- Uplink Port : Yes
- Manufacturer : Ubiquiti Inc.
- Product Model : USW-PRO-48-POE
- Compatible Rack Unit : 1U
- Manageable : Yes
- Network Technology : 10/100/1000Base-T,10GBase-X
- Redundant Power Supply Supported : Yes
- Ethernet Technology : Gigabit Ethernet,10 Gigabit Ethernet
- Environmentally Friendly : Yes
- Layer Supported : 3
- PoE Budget : 600 W
- Input Voltage : 120 V AC,230 V AC
- Port/Expansion Slot Details : 40 x Gigabit Ethernet PoE+,8 x Gigabit Ethernet PoE++,4 x 10 Gigabit Ethernet Expansion Slot
- Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
- Limited Warranty : 1 Year
- Product Material : Galvanized Cold Rolled Steel (SGCC)
- Network (RJ-45) : Yes
- Product Type : Layer 3 Switch
- Number of Total Expansion Slots : 4
- Networking Standards : IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
- Total Number of Network Ports : 48.0
- Power Consumption : 60 W
- Media Type Supported : Optical Fiber,Twisted Pair
- Product Line : UniFi Pro PoE
- Expansion Slot Type : SFP+
- Number of SFP+ Slots : 4
